PRODUCT INFORMATION

Broken Tap Remover Electric Discharge Machine

● Unbeatable for removing broken taps and drill bits !
● New computerized power supply unit with touch-sensor panel !
● Twice the speed of previous models !



FEATURES

●Removes taps of any size, M2-30
●Suitable for use with workpieces of any conductive material.(aluminum,brass,copper,cast iron,stainless steel,special steel,etc.)
●Automatically stops at a specified machining depth, pulls out and sounds  a buzzer when machining is complete.
●Overlord alarm function prevents damage to the EDM head by automatically stopping the head's downward motion upon meeting a specified resistance.
●Short timer function stops machining automatically when there is a  short of specified 3,7 or 10 seconds duration.

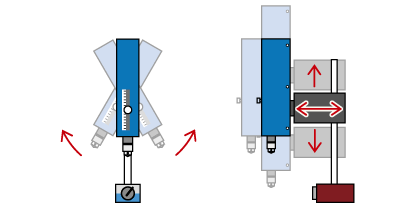

●Rotating EDM head.

MOVIE

How TAP REMOVER

Spiral taps too! How TAP REMOVER gets taps out of your way.

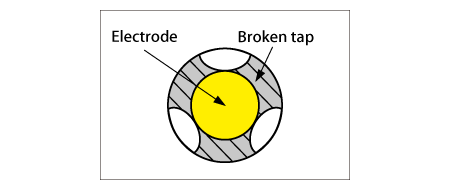

  • OVERHEAD VIEW

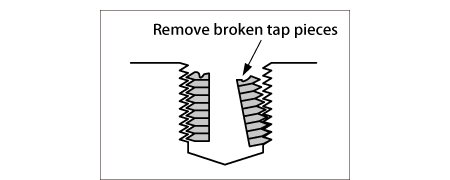

  • CROSS SECTION

To remove a broken tap end that is stuck in a hole, make a hole in its center using an electrode of one-half the diameter of the tap. Removing the tap in pieces leaves the threads intact.



Examples of Versatility

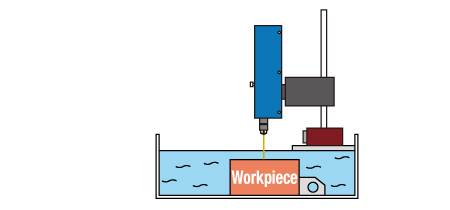

  • SMALL WORKPIECE
    Submerge workpiece in work tank.

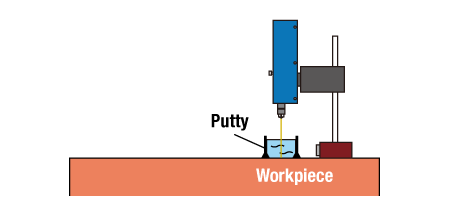

  • LARGE WORKPIECE
    Create a pool on the workpiece surface using putty.

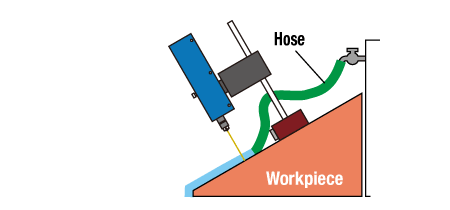

  • NON-VERTICAL MACHINING
    Supply a flow of water while machining.

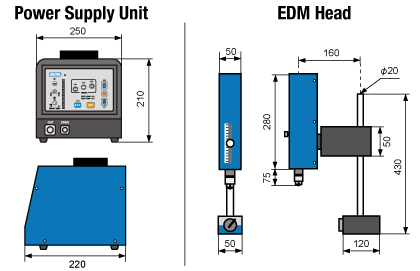

DIMENSIONS AND SPECIFICATIONS

  • Power Supply Unit
    Weight 4Kg
    Dimensions 250×220×210
    Power Supply AC 85~264V 300W
    EDM Head
    Weight 6Kg(Including magnet stand)
    Dimensions 50×250×430
    Z-axis stroke 100mm
    Electrode holder (SUS chuck) MAX Φ6.5

MACHINING SPEED

  • Tap size Machining depth Time Required Electrode Diameter
    M 6 10mm 5min Φ3
    M 10 10mm 10min Φ5

OTHER APPLICATIONS

  • ●Pre-hole drilling of workpiece for wire cut
    ●Cutting for Tungsten carbide workpiece

STANDARD FIXTURES

  • ●Power Supply Unit
    ●EDM Head
    ●Magnet Stand
    ●Special putty 150g(5×50×450)
    ●Electrodes(brass rod)
     2 rods each : Φ1.0・Φ1.5・Φ2.0・Φ2.5・Φ3.0
     1 rods each : Φ4.0・Φ5.0・Φ6.0
